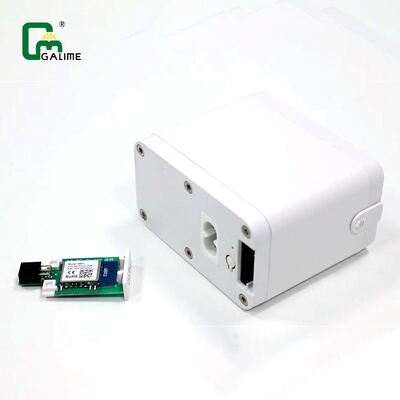

24W Curtain Motor Eco Energy Saving RS485 2.0N.M Roller Shade Motor Wired Control

24W Eco-Energy Saving X20 RS485 Curtain Motor 2.0N.m High Torque Wired Control for Green Buildings

Product Overview

The X20 RS485 Edition is engineered for the next generation of sustainable architecture. In modern commercial buildings, energy efficiency is paramount. By utilizing an advanced high-density drive system, the X20 achieves a powerful 2.0N.m torque output with a remarkably low 24W power consumption. This is approximately 60% more efficient than traditional commercial motors (often rated at 65W+). For hotels, offices, and public buildings deploying hundreds of units, the X20 significantly lowers the electrical baseload and heat emission, making it the ideal choice for LEED-certified projects and eco-conscious facility management.

Key features

• Operational Cost Efficiency: Designed for scale. When installing 500+ motors in a corporate tower, every watt counts. The X20's 24W low-power architecture reduces the building's overall energy footprint without sacrificing lifting power (handling loads up to 60kg). It aligns perfectly with corporate sustainability goals.

• Intelligent Daylight Harvesting: Via the precise bi-directional RS485 interface, the X20 integrates seamlessly with BMS (Building Management Systems) to enable "Daylight Harvesting." The curtains can automatically adjust to specific percentages (e.g., 40% tint) based on sunlight intensity sensors, optimizing natural light while reducing the load on HVAC air conditioning systems.

• Cool-Running Longevity: Efficiency means less waste heat. Unlike inefficient motors that get hot quickly, the X20 runs cool even during frequent adjustments. This thermal efficiency protects the internal electronics and gears, extending the service life of the asset in demanding 24/7 commercial environments.

• Compact Integration (82mm): While performance is heavy-duty, the form factor remains the signature X20 "Short Cube" (82×46×70mm). This allows it to fit discreetly into narrow office window mullions or shallow hospitality bulkheads where standard commercial motors are too bulky to install.

Specifications

FAQ

Q1: How does 24W power affect the pulling force?

A1: It doesn't reduce it. Thanks to our upgraded magnetic core design, we achieve 2.0N.m torque using only 24W. It's like an electric car—more torque with less energy compared to an old gas engine.

Q2: Can I daisy-chain the RS485 connection?

A2: Yes, the X20 RS485 version supports standard daisy-chain topology. Each motor has a unique address ID, allowing you to control them individually or in groups over a single bus line.

Q3: Is the communication protocol open?

A3: Yes, we provide the complete Hex serial protocol (API) to system integrators, allowing full custom programming for any third-party control system.

Q4: What is the benefit of the <30dB noise level in an office?

A4: In open-plan offices or conference rooms, motor noise can be distracting. The X20 operates at a "whisper" level (<30dB), ensuring that automated shade adjustments do not interrupt meetings or focus work.
