Pocket Sized 82mm Curtain Motor For Roller Shades 50kg Heavy Load Invisible Track

Pocket-Sized 82mm Micro X10 Series Curtain Motor 50kg Heavy Load Capacity Invisible Track Integration

Product Overview

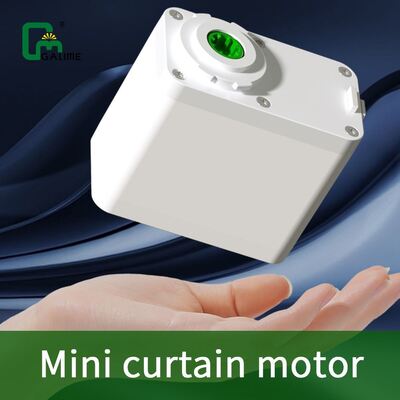

Meet the X10, a revolution in window automation sizing. Breaking away from the traditional tubular design, the X10 features a radical Micro-Box Form Factor measuring just 82mm in length—shorter than a standard credit card. With a concise body length of 82mm, it offers a significantly reduced footprint compared to traditional tubular motors (which often exceed 250mm). This compact design allows for a cleaner, more discrete installation behind curtain headings. It represents the perfect entry point for users seeking a powerful yet unobtrusive automation solution that doesn't dominate the window aesthetic.

Key features

• Space-Efficient Architecture: The 82mm chassis is engineered to maximize installation flexibility. It fits easily into standard curtain boxes or tight architectural reveals where a long tubular motor might be visible or hard to maneuver, offering a neat and tidy look.

• High Power-to-Size Ratio: While compact, the X10 does not compromise on performance. It maintains a robust 1.8N·m rated torque, capable of driving curtain weights up to 50kg. This ensures it can handle the same heavy fabrics as its larger predecessors in the GM series.

• Reliable RF Communication: Featuring an enhanced RF module with -100dBm sensitivity, the motor ensures consistent control response. The 433.92MHz signal penetrates walls effectively, providing a reliable operational range of over 30 meters indoors.

• Stable Environmental Adaptability: Designed for global applications, the X10 operates smoothly across a wide temperature range (-5℃ to 45℃). Its robust casing (IP41) protects internal components from dust, ensuring longevity in various residential environments.

Specifications

FAQ

Q1: How does the box shape differ from GM Series motors?

A1: Tubular motors are long and cylindrical, often visible at the end of the track. The X10's box shape is short and square (only 82mm long), designed to be easily hidden behind the curtain fabric pleats for a cleaner look.

Q2: Is the 82mm length suitable for narrow windows?

A2: Yes, it is an excellent choice for windows where horizontal space is limited. It requires much less clearance than standard motors.

Q3: Can this motor handle curved tracks?

A3: Yes, despite its compact size, the 1.8N.m torque allows it to operate smoothly on both straight and curved tracks with a load up to 50kg.

Q4: Does it have a "Soft Start" feature?

A4: Yes, the X10 includes soft start and soft stop technology to protect the track system and ensure elegant curtain movement.
