Tuya WiFi Smart Liftable Curtain System High Ceiling Windows Drapery Track System

Tuya WiFi Smart Liftable Curtain System with GM40 Motor for Easy Maintenance of High Ceiling Windows

Key Features

• Maintenance Revolution: Lower the curtain track from heights of up to 6+ meters down to your reach with the 50N.m lifting motor, eliminating the need for ladders or scaffolding.

• Dual Smart Control: Independently control the "Lift" (Up/Down) and the "Traverse" (Open/Close) functions via the Smart Life app or voice commands.
• Residential Optimization: The GM40 curtain motor provides 1.5N.m of torque, perfectly calibrated for standard household blackout or sheer fabrics.
• Safety Lock Mechanism: The lifting system features a robust mechanical design that securely locks the rail in place when raised.
• Hidden Aesthetic: The compact GM40 motor hides neatly behind the fabric, maintaining the sleek look of your luxury interior.

Technical Parameters

Lifting Motor Specs (System A - Vertical) Controls the raising and lowering of the track.

Curtain Motor Specs (System B - Horizontal) Controls the opening and closing of the fabric.

How It Works?

The Dual-Core Mechanism Understanding the engineering behind the GM40 system reveals why it is the safest choice for your home. The system operates on two distinct axes:

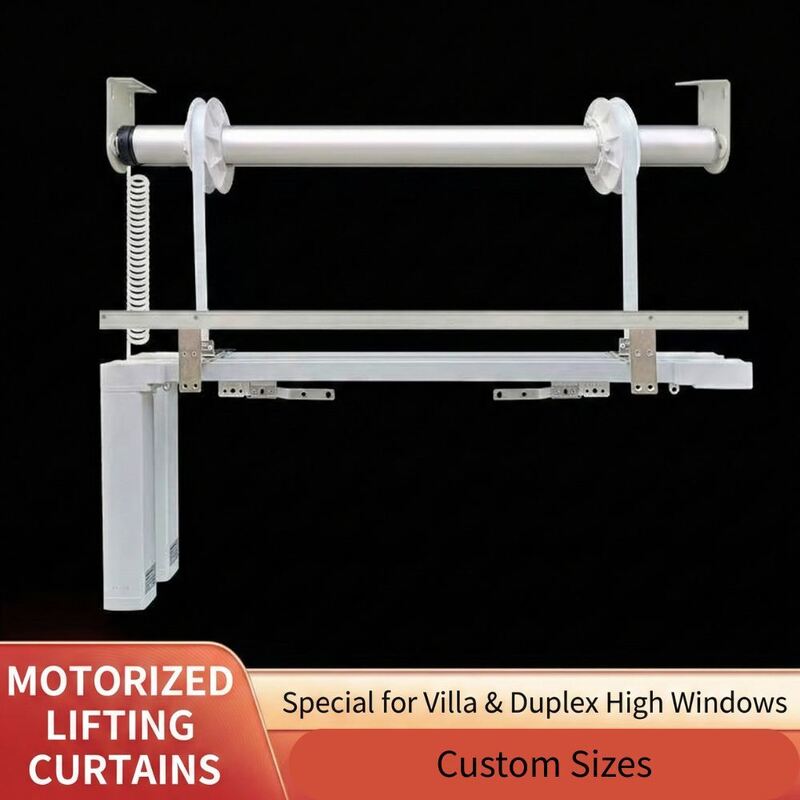

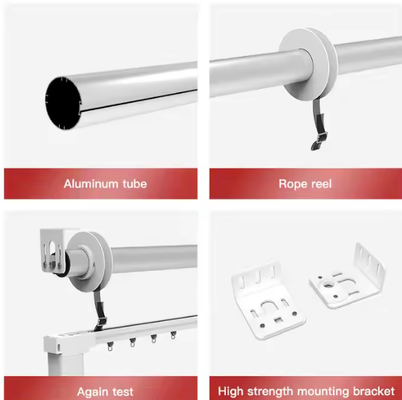

• The Vertical Axis (Lifting Phase): At the heart of the system is the GZ45-50 Tubular Motor. This industrial-grade engine drives a central transmission shaft connected to multiple wire reels (spools). High-tensile steel cables, rated for heavy loads, are wound around these reels. When "Maintenance Mode" is activated via the remote, the motor unwinds the cables simultaneously, lowering the entire aluminum track bar smoothly to the ground.

  • Safety Note: The system includes a limit switch calibration that ensures the track stops exactly at a comfortable reaching height (e.g., 1.2 meters from the floor).

• The Horizontal Axis (Traversing Phase): Once the track is raised back to the ceiling, it engages with a mechanical locking slot. Only when securely locked does the GM40 Curtain Motor receive power. This secondary motor drives the belt inside the track to open and close the fabric. This electrical interlock prevents the curtain from opening while the track is moving vertically, ensuring 100% operational safety.

Why Choose the GM40 System?

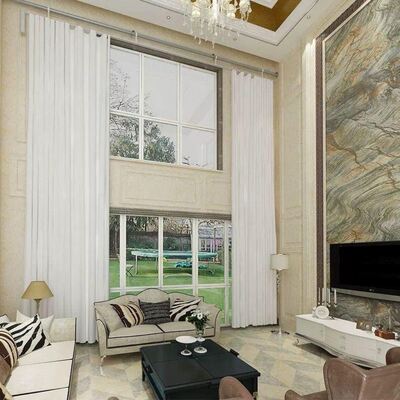

• Solving the "Impossible" Clean: In homes with 6-meter high ceilings, dust accumulates on curtains, and washing them usually requires hiring a professional crew with scaffolding. With the GM40 system, a single person can lower the curtains, unhook the fabric, wash it, and re-hang it in under 30 minutes.

• Protection of Valuables: By removing the need for ladders and heavy equipment inside the house, you protect expensive flooring, furniture, and artwork from accidental damage during curtain maintenance.

• Future-Proofing Your Home: As smart homes become the standard, having a fully automated, app-controlled window system adds significant value and "wow factor" to luxury properties. The integration with Alexa and Google Home means you can control the ambiance of your grand living room with just your voice.

FAQ

Q1: How do I wash the curtains with this system?

A1: It's simple. Use the "Maintenance Mode" on your remote or app to lower the track to chest level (approx. 1.2m from the floor). You can then easily unhook the fabric, wash it, and re-hang it without needing a ladder.

Q2: Is it safe? Will the track fall down?

A2: Safety is our priority. The GZ45-50 motor is equipped with a mechanical self-locking gearbox. This means that even if power is lost, the track is physically locked in position and cannot slide down.

Q3: Do I need to connect two motors to the app?

A3: Yes, the system appears as two devices in the Tuya App: one for "Lifting" and one for "Curtain". You can group them or control them separately to prevent accidental lifting during daily use.

Q4: Can I stop the lifting at any height?

A4: Yes, but we strongly recommend only operating the curtain opening/closing when the track is fully raised to the top or fully lowered for maintenance.

Q5: What happens if there is a power outage?

A5: The system will stop moving. The curtain cannot be operated manually during an outage, but the self-locking feature ensures the heavy track remains securely suspended.
