KNX Home Electric Remote Control Curtain Closer Motor Wired Bus Control For Building

KNX Smart Home Electric Curtain Motor X10 AC Wired Bus Control 1.8N.m Torque for Building Automation System

Product Overview

Designed for professional system integrators, the Galime X10 KNX Curtain Motor offers seamless integration into the world standard KNX Building Automation System. Unlike consumer-grade motors, the X10 KNX connects directly to the wired bus line, providing unmatched stability and real-time bidirectional feedback for high-end residential and commercial projects.

Despite its incredibly compact size (only 82mm long), this motor packs a punch. It delivers a robust 1.8N.m torque, capable of driving heavy velvet curtains weighing up to 50kg. Engineered for reliability, it features an S2 3min duty cycle and Class E insulation, ensuring safety and longevity even in demanding operational environments. It supports both precise KNX wired control and flexible handheld RF remote operation.

Key Features

• Native KNX Support: Fully compatible with standard KNX/EIB systems for centralized control of lighting, HVAC, and shading.

• Compact Powerhouse: Weighing just 292g with a tiny footprint, yet powerful enough to pull 50kg loads effortlessly.

• Hybrid Control: Offers the reliability of wired bus control (KNX) combined with the convenience of wireless RF433 remote control (-100dBm sensitivity).

• Quiet Operation: Precision engineering keeps the running noise below 35dB, perfect for noise-sensitive hotel rooms and meeting halls.

• Safety First: Built with IP41 protection and E-class insulation with automatic thermal protection logic.

Specifications

FAQ

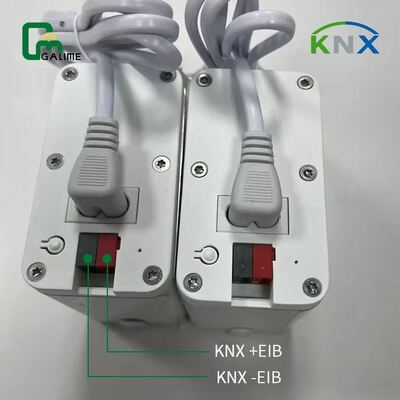

Q1: Does this motor require a separate KNX actuator?

A1: This model is designed for KNX systems. Please refer to the specific wiring diagram provided with the unit to ensure correct connection to your bus system or actuator interface.

Q2: What is "S2 3min" work duty?

A2: This means the motor is rated for "Short-time duty" operation for up to 3 minutes continuously, which is sufficient to open/close even the tallest curtains multiple times before needing a cool-down period.

Q3: Can I control it with a remote if the KNX bus is down?

A3: Yes, the X10 KNX version has a built-in RF receiver (433.92MHz). You can use a handheld remote for local control independently of the bus system.

Q4: Is the size really only 82mm?

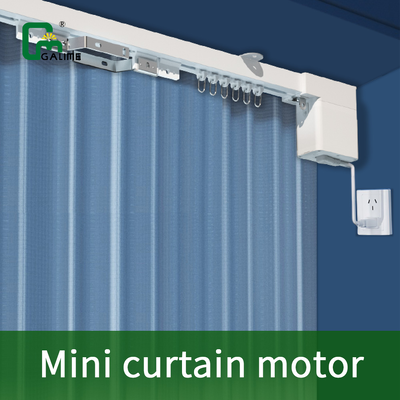

A4: Yes, the X10 is engineered to be extremely compact (82*46*80mm), making it ideal for narrow curtain boxes or minimalist installation spaces where standard motors might not fit.
